ASH FORK STONE DAM
|
|
|
CADAM HEC-HMS FlowMaster |

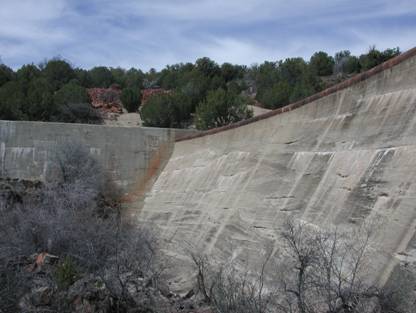

Ash Fork Stone Dam is a railroad water supply dam built in
1911 by the Atchison Topeka and Santa Fe Railway Company. The Ash Fork
Development Association has been using the reservoir impounded by the dam as
a source of fire protection water, and wanted a report on the condition of
the dam. Their biggest concern was several large cracks in the surface of the
dam. In general, the dam is in good condition. The cracks that
can be seen on the faces of the dam do not pose a threat to the structure.
There is a stream channel that runs parallel to the dam's face on the left
side embankment, that is undercutting its foundation, but this is the only
problem with the structure. The dam is currently licensed by the Arizona
Department of Water Resources to hold water to its crest. The dam will safely pass the 100-year 24-hour storm flood
event of 10,460 cubic feet per second. The headwater behind the dam will be
3.19 feet above the crest during this flooding event. The dam's maximum
storage capacity is 73.4 million gallons. Please note that this is a student report, and should not
be used for design without the consultation of a registered Professional
Engineer (P.E.). Jeremy W. Laipple is a senior civil engineering student at Northern Arizona University. |
